A Guide to Fire Sprinkler System Compliance

Fire safety isn’t just a regulatory checkbox. It’s a lifeline for your business. From protecting valuable assets to saving lives, an effective fire suppression strategy is vital. One of the most trusted systems in commercial fire safety is the sprinkler system. However, ensuring sprinkler system compliance goes beyond installation. Business owners must understand how these systems function, their legal requirements, and how they contribute to overall fire safety.

In this guide, we break down the mechanics behind fire sprinkler systems, explore their different types, address misconceptions, offer a roadmap to staying compliant, and provide additional context to help you make confident decisions for your facility.

Understanding How Fire Sprinkler Systems Work

To appreciate the importance of compliance, we need to start with how sprinkler systems actually operate. Contrary to dramatic movie depictions, fire sprinkler systems are smart, engineered mechanisms, not crude water traps waiting to go off. Their sophisticated design makes them one of the most effective tools for fire control in any commercial environment.

How Fire Sprinklers Detect and Respond to Fire

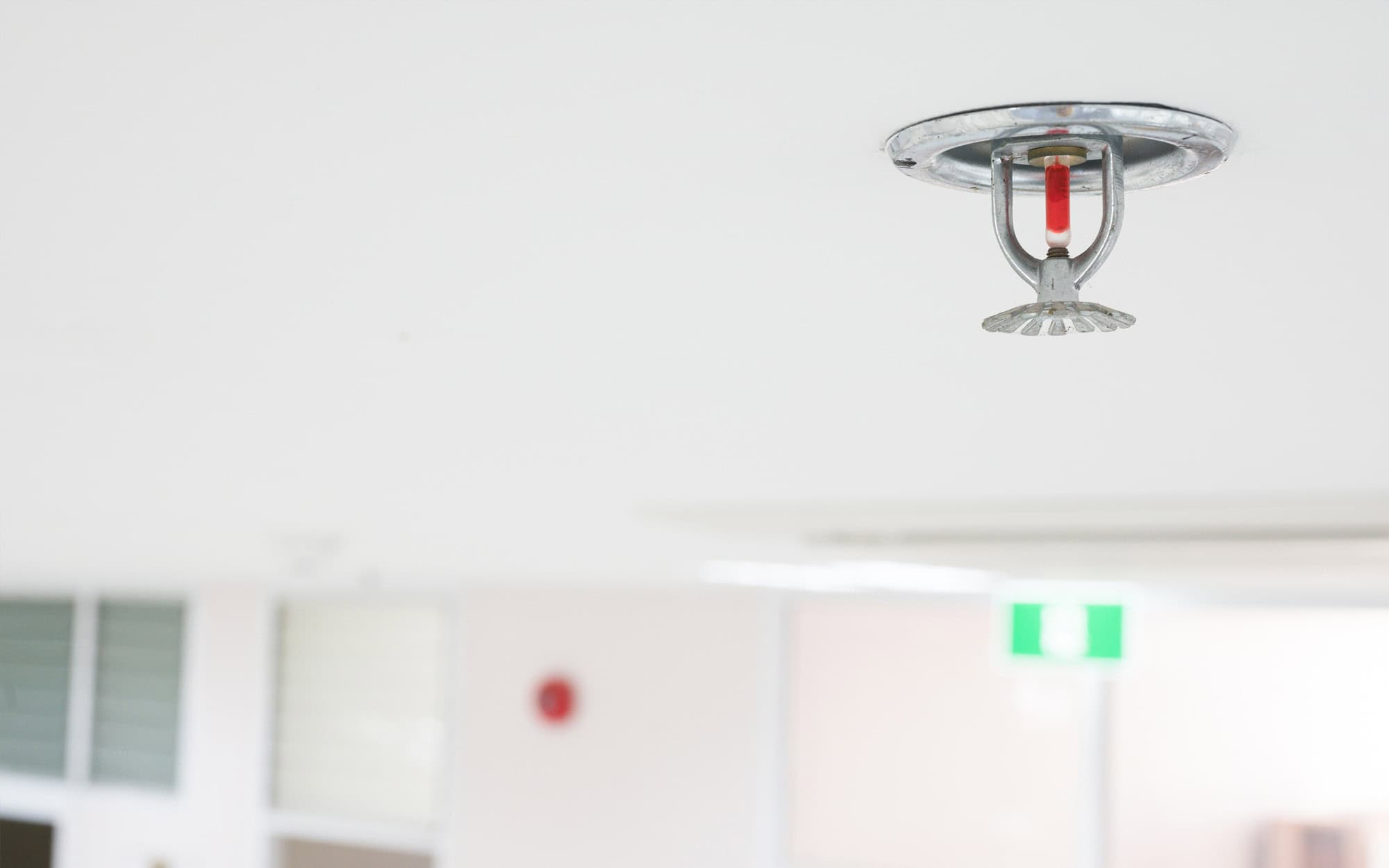

Each sprinkler head contains a heat-sensitive element, such as a glass bulb filled with a liquid that expands when heated. When the air temperature around a sprinkler reaches a set point—typically between 135°F and 165°F—the glass bulb bursts, releasing water directly over the fire source. This thermal sensitivity ensures that sprinklers are activated only in response to real fire threats, not smoke or steam.

Importantly, only the sprinkler head(s) near the fire activate, not the entire system. This targeted approach helps minimize water damage while maximizing suppression effectiveness. It is a common misconception that all heads go off simultaneously, but in reality, the design helps preserve unaffected areas of your facility.

The Role of Water Pressure

Sprinkler systems are connected to a reliable water source, which can be municipal or a dedicated water tank. When activated, pressurized water flows through the pipes to the open sprinkler head, dousing flames and controlling the fire until emergency responders arrive. Adequate water pressure and volume are vital for effective system performance, and they’re routinely tested during maintenance checks.

Types of Commercial Fire Sprinkler Systems

Understanding which sprinkler system is best for your facility is a key element of compliance. Choosing the wrong system could mean non-compliance or ineffective protection.

Wet Pipe Systems

These are the most common type in commercial buildings. Water is always present in the pipes, allowing for an immediate response when a sprinkler is triggered. Their simplicity makes them cost-effective and reliable, ideal for environments where freezing isn’t a concern.

Dry Pipe Systems

Used in unheated buildings where pipes might freeze, these systems keep compressed air in the pipes. When a sprinkler activates, the air is released first, followed by water. While slightly slower to activate than wet pipe systems, they offer a viable solution for warehouses and loading docks.

Pre-Action Systems

Ideal for facilities with sensitive equipment like data centers, pre-action systems require two events: fire detection and sprinkler activation. This prevents accidental discharges that could damage valuable electronics or inventory. These systems are highly specialized and require regular testing and monitoring.

Deluge Systems

Designed for high-hazard areas, all sprinklers in a zone activate simultaneously when triggered. These systems require significant water flow and are common in industrial settings such as chemical plants or aircraft hangars. Their power makes them essential for preventing disaster in extreme-risk areas.

Each system serves specific environments, and sprinkler system compliance hinges on selecting the right one for your building’s layout, usage type, and risk level. Work with fire safety professionals to ensure the system matches your operational needs.

Discover how a commercial sprinkler system safeguards your business investment and learn why it’s a crucial asset protection tool.

Learn More

Why Fire Sprinklers Are Incredibly Effective

One of the most critical roles of sprinkler systems is damage prevention. According to the National Fire Protection Association (NFPA), when sprinklers are present, the death rate per 1,000 reported fires is 87% lower than in fires without them. Property damage is also significantly reduced.

Here’s why they’re so effective:

Rapid Response: Sprinklers typically activate within moments of detecting a fire, significantly reducing spread. This early intervention helps contain the fire before it escalates.
Localized Activation: Only the sprinkler(s) closest to the fire discharge water, preserving other parts of the property. This reduces collateral damage and makes cleanup and recovery faster.
Continuous Suppression: Systems work until manually turned off, helping keep flames in check even before firefighters arrive. This continuous control can be the deciding factor in saving lives and maintaining business continuity.

Properly maintained sprinkler systems can be the difference between a minor incident and a catastrophic loss. That’s why maintenance and inspection protocols must be rigorously followed.

Demystifying Fire Sprinkler Misconceptions

Fire sprinkler myths often discourage building owners from investing in them.

Let’s clear up a few:

Misconception 1: All Sprinklers Go Off at Once

False. Only the sprinkler head exposed to the heat of the fire will activate. The system is designed for precision, not overkill.

Misconception 2: Sprinklers Cause More Damage Than Fires

Also false. While sprinklers release water, it’s far less damaging than a fully developed fire or the water from fire hoses. Fire hoses release hundreds of gallons per minute, compared to the modest 15–25 gallons per minute from a sprinkler.

Misconception 3: Sprinklers Are Triggered by Smoke

They respond to heat, not smoke. Smoking or burning toast will not set them off. This misconception often stems from Hollywood dramatizations rather than facts.

Dispelling these myths is key to building trust and encouraging compliance. Educating tenants and staff on these points can further enhance your safety strategy.

Staying Compliant With Sprinkler System Requirements

Fire sprinkler system compliance requires meeting local, state, and national fire codes. These codes can vary significantly depending on the jurisdiction and building classification.

Here are key actions businesses must take:

Schedule Regular Fire Safety Inspections

Inspections help identify malfunctions, corrosion, blockages, and pressure issues. Most jurisdictions require annual inspections, but some may demand more frequent checks. Proactive inspection schedules ensure ongoing readiness.

Maintain Clear Access

Avoid blocking sprinkler heads with furniture or decor. Sprinkler clearance is critical to proper operation. Any obstructions could delay activation or reduce water distribution, compromising safety.

Keep Documentation Up to Date

Maintain accurate records of all inspections, tests, repairs, and modifications. Documentation not only proves compliance but also helps identify patterns or recurring issues that need addressing.

Train Employees

Ensure staff know where control valves are, how to recognize problems, and the steps to take in case of activation. Training should be part of your regular fire drills and onboarding process.

Work With Certified Professionals

Installations, upgrades, and inspections should be carried out by certified fire protection professionals. Partnering with experts guarantees that your system is up to code and optimized for your specific needs.

Answering Common Fire Sprinkler Questions

When it comes to sprinkler system compliance, understanding how these systems function during an actual fire event can alleviate concerns and ensure peace of mind. Business owners and facility managers often have practical, everyday questions that go beyond technical specifications or code requirements.

In this section, we answer some of the most frequently asked questions to help you feel more confident about your fire protection systems.

Our Fire Protection Services

At BMF Solutions, we specialize in end-to-end fire protection services tailored to meet the needs of modern commercial facilities. From custom-designed fire sprinkler systems and professional installations to routine inspections, code compliance assessments, and emergency service support, our experienced team is here to safeguard your property and your people. We understand the complexities of local and national sprinkler system compliance and provide solutions that not only meet but exceed compliance standards.
