How Fire Standpipes Help With Sprinkler System Integration

When it comes to protecting life and property, the best fire protection systems are those that operate seamlessly together. While fire sprinklers are a familiar sight in commercial ceilings, fire standpipes, those vertical pipes you may spot in stairwells, play just as critical a role in delivering water to key areas during a fire. What many building owners don’t realize is that sprinkler system integration and fire system coordination often require both of these systems to be installed and connected.

Standpipes and Sprinklers: A Quick Breakdown

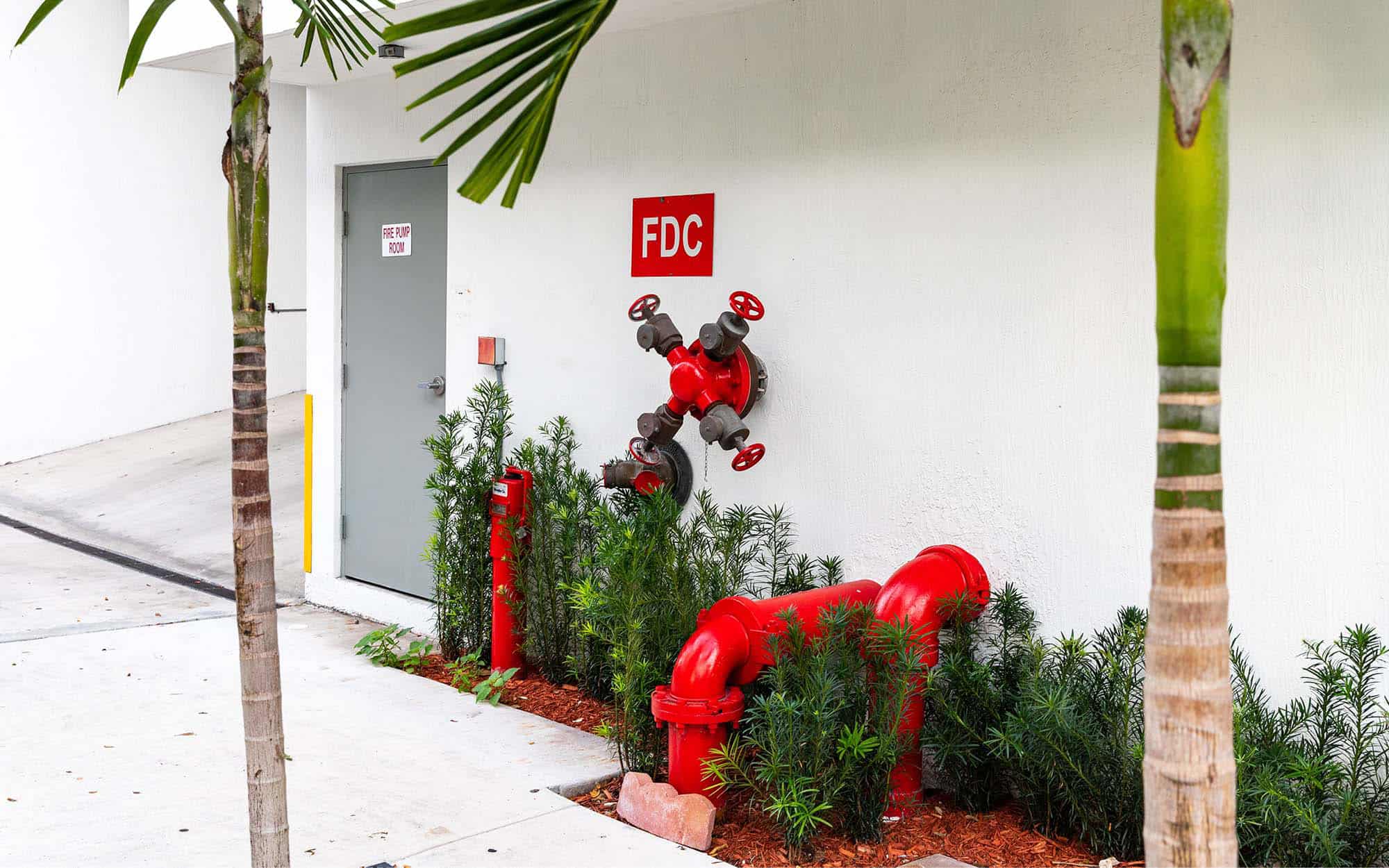

Fire standpipes are a vertical network of pipes that deliver water throughout a building, often seen in stairwells or utility shafts. These systems allow firefighters to hook up hoses on specific floors instead of dragging them up several flights, saving precious time during an emergency.

Fire sprinkler systems, by contrast, are automatic suppression systems designed to activate in response to heat. Once triggered, they spray water directly over a fire’s point of origin to suppress it before it spreads.

Both systems serve distinct but complementary roles in a fire protection strategy:

Standpipes: manual fire suppression (used by firefighters)
Sprinklers: automatic suppression (activated by heat sensors)

It’s not a matter of one or the other. In many commercial and industrial properties, both are required, and must be designed to work as one coordinated system.

Where Are Both Systems Required?

Sprinkler systems and standpipes often work together in structures that are larger, taller, or pose a higher fire risk. Scenarios where both are required include:

High-Rise Buildings

In buildings with multiple floors, fire standpipes are essential. They provide fast water access for firefighters on every level. Sprinklers are also required to suppress flames quickly before first responders arrive. Here, the systems are often coordinated by floor, ensuring that each level has both manual and automatic suppression capabilities.

Warehouses and Industrial Facilities

Large, open spaces with significant storage volume create unique fire challenges. Sprinklers help address localized flare-ups, while standpipes allow firefighters to target fires in hard-to-reach zones, especially when high racks or machinery make hose access difficult.

Hospitals and Healthcare Facilities

In environments where evacuation is complex and vulnerable populations are present, redundancy is critical. Integrated fire protection that includes both sprinklers and standpipes ensures fires are addressed rapidly from both inside and outside the system.

Can One System Replace the Other?

It’s a common question: If I already have a sprinkler system, do I still need a standpipe?

The answer is almost always yes, especially in buildings over a certain height or with particular layouts. Each system is designed for different purposes:

Sprinklers activate automatically, controlling the fire until emergency personnel arrive.
Standpipes are manual systems, giving firefighters reliable access to water inside the building.

Standpipes are not a backup plan. They’re a primary tool for first responders. Likewise, sprinkler systems aren’t a substitute for on-the-ground firefighting. Together, they form a dual fire protection system that addresses multiple scenarios.

How Sprinkler System Integration Works: Behind the Scenes

In modern building codes and fire protection engineering, sprinkler system integration isn’t just a best practice. It’s often a legal requirement. Coordination between the two systems is key, particularly during the design and installation phases of construction or retrofits.

Here’s how the two systems are typically integrated:

1. Shared Water Supply

In many buildings, especially in the Houston area, both the sprinkler and standpipe systems share a water source. This is often a fire pump connected to a municipal supply or an on-site water storage tank. Ensuring adequate flow and pressure for both systems requires precise calculations and planning.

2. Zoned by Floor

High-rise systems are typically zoned vertically, meaning each floor has a section of piping that serves both the sprinkler heads and the standpipe outlets. This allows for efficient isolation and maintenance, as well as more accurate pressure control.

3. Pump Coordination

In facilities where a fire pump is required, integration ensures that pressure is delivered to both systems simultaneously. The fire pump must be sized and configured to accommodate peak demand from both sprinkler activation and firefighter hose operations.

4. Control and Monitoring

Modern fire protection systems are equipped with control panels that monitor flow, pressure, and valve positions for both standpipes and sprinklers. Integration means that alarms and maintenance alerts are shared across the systems, critical for ensuring uptime and compliance.

Design Considerations for New Builds and Retrofits

Whether you’re designing a new facility or upgrading an existing one, sprinkler system integration must be a core consideration. Many property owners don’t realize that installing one system without the other may not meet local fire codes—or may create gaps in coverage that put lives and assets at risk.

Here’s what to factor into your planning:

Code Compliance: Check local and national requirements (such as NFPA standards) for when standpipes and sprinklers are both required.
System Compatibility: Ensure the systems can share a pump, tank, and alarm infrastructure where applicable.
Access Points: Standpipes should be located in stairwells, near elevators, or in utility chases, places firefighters can easily reach.
Retrofitting Challenges: When upgrading older buildings, integration may require creative routing of pipes, use of pre-action valves, or structural modifications to ensure full coverage.

BMF Solutions provides Houston and surrounding areas with fire standpipe services.

Our Standpipe Solutions

Do I Need Both a Standpipe and a Sprinkler System?

In short: if your building is located in Houston or the surrounding region, the answer is almost always yes. Building codes and regional fire risk patterns make it standard for properties to use both. Even if you currently have one system, an inspection may reveal that the other is required, or that your systems are not properly integrated.

Sprinkler system integration and fire system coordination aren’t optional features. They’re critical safeguards that protect lives and property in every corner of your building.

Plan for Full-System Protection

Fire protection isn’t one-size-fits-all. It’s about combining the right tools in the right places to respond to the unexpected. In many facilities, dual fire protection means having both a sprinkler system and a standpipe, working in sync to suppress fires quickly and give emergency personnel the upper hand.

When you’re ready to assess your system or plan a coordinated upgrade, work with a contractor who understands the nuances of code compliance, water pressure balance, floor zoning, and risk mitigation.

Full-Circle Fire Protection Starts Here

From initial design to ongoing inspections, BMF Solutions offers comprehensive services that ensure your sprinkler and standpipe systems are properly integrated, fully compliant, and ready to perform when it matters most. Our team specializes in new installations, retrofits, inspections, testing, repairs, and pump coordination—all customized to meet the unique demands of your facility. Let us help you build a smarter, safer fire protection system that works as one.

We’re proud to serve commercial, healthcare, industrial, and multi-family buildings across Houston and surrounding areas with tailored fire protection solutions that exceed expectations and code requirements. With BMF Solutions, full-system peace of mind is always within reach.

Ready to explore integrated fire protection? Contact BMF Solutions today to schedule a consultation and ensure your building is fully covered.
