Commercial Fire Sprinkler System Design for Construction

What Sets Large-Scale Commercial Sprinkler Design Apart

Not every commercial project demands the same level of design work. A single-story office building with one occupancy type and a reliable municipal water connection is a relatively straightforward job. Large-scale commercial fire sprinkler system design is not.

When a building exceeds a certain size or complexity, the design challenges compound quickly. Multiple occupancy types can exist under one roof, each requiring different sprinkler density, head spacing, and pressure. Ceiling heights shift from standard office configurations to open high-bay areas. The water supply must keep pace with peak demand across every zone simultaneously. Getting all of those variables to work together is the central challenge of sprinkler design on large projects, and it requires expertise that goes well beyond selecting a system type.

Hydraulic Calculation Fire Sprinkler System Requirements

Large commercial builds almost always require a detailed hydraulic calculation and fire sprinkler system analysis. Hydraulic calculations determine exactly how much water the system must deliver at specific locations under fire conditions. These calculations drive decisions about pipe sizing, system configuration, and whether the local municipal supply can meet demand at adequate pressure.

When demand exceeds what the water main can supply, a fire pump becomes part of the design. In some cases, a dedicated fire water storage tank is also required to supplement the supply. Both components affect structural planning, electrical load schedules, and mechanical room layout, which means their need must be identified during early design coordination rather than after mechanical and structural plans are already complete.

Multi-Zone Coverage and System Segmentation

Buildings covering significant square footage typically require the sprinkler system to be divided into zones. Each zone can be isolated for maintenance, testing, or inspection without taking the entire system offline. Zone boundaries need to align with the building’s occupancy areas and construction features. Defining those boundaries during the design phase prevents field conflicts during rough-in that generate expensive change orders.

NFPA 13 Sprinkler Standards Across Multiple Occupancy Types

Every commercial sprinkler system in the United States must comply with NFPA 13, the national standard governing sprinkler system design and installation. NFPA 13 sprinkler requirements establish the rules for head selection, head spacing, pipe sizing, hanger placement, and system acceptance testing. On large projects, those rules apply across multiple occupancy classifications at once.

Light hazard areas like offices require less sprinkler density than ordinary hazard areas like commercial kitchens or manufacturing support spaces. Extra hazard environments, such as industrial process areas or flammable storage rooms, require significantly more robust coverage. When a single building contains all three classifications, each zone must be designed to the correct standard, and the plan submitted to the authority having jurisdiction must clearly document where boundaries fall.

In the Houston area, how Houston-area fire codes apply to commercial construction adds requirements on top of NFPA 13. Local jurisdictions conduct their own plan reviews, and submittals that miss local requirements come back with comments that slow down the entire permit timeline.

Warehouse Sprinkler System Design Considerations

Few building types push fire sprinkler design requirements further than large distribution and storage facilities. Warehouse sprinkler system design accounts for the type of commodity stored, storage height, aisle configuration, and whether the building uses high-piled storage. All of these factors affect which heads are specified, where they are placed, and how much water the system must deliver.

In-rack sprinkler systems are required for certain high-storage configurations. These systems place heads directly inside the racks at multiple levels, providing suppression coverage that ceiling-mounted heads alone cannot deliver when storage reaches extreme heights. The design work involved in a warehouse sprinkler system goes far beyond laying out a standard ceiling grid, and it requires a contractor who understands how storage configurations and commodity classifications translate into code requirements.

Special Hazards and High-Complexity Suppression Needs

Some large commercial buildings include areas that require more than a standard wet pipe sprinkler system. Data centers, commercial kitchen exhaust systems, industrial process areas, and locations with flammable liquids fall into categories where standard sprinkler coverage alone is not sufficient protection.

These environments often require special hazard systems that use alternative suppression agents or specialized configurations tailored to the specific hazard present. When a large-scale project includes both standard sprinkler zones and special hazard suppression areas, those scopes have to be coordinated by a contractor experienced in designing and installing both types of systems within the same facility.

Bring fire protection expertise into your large commercial project before the design phase closes with BMF Solutions.

Our Sprinkler System Installation Services

Trade Coordination on Large Commercial Building Fire Sprinkler Projects

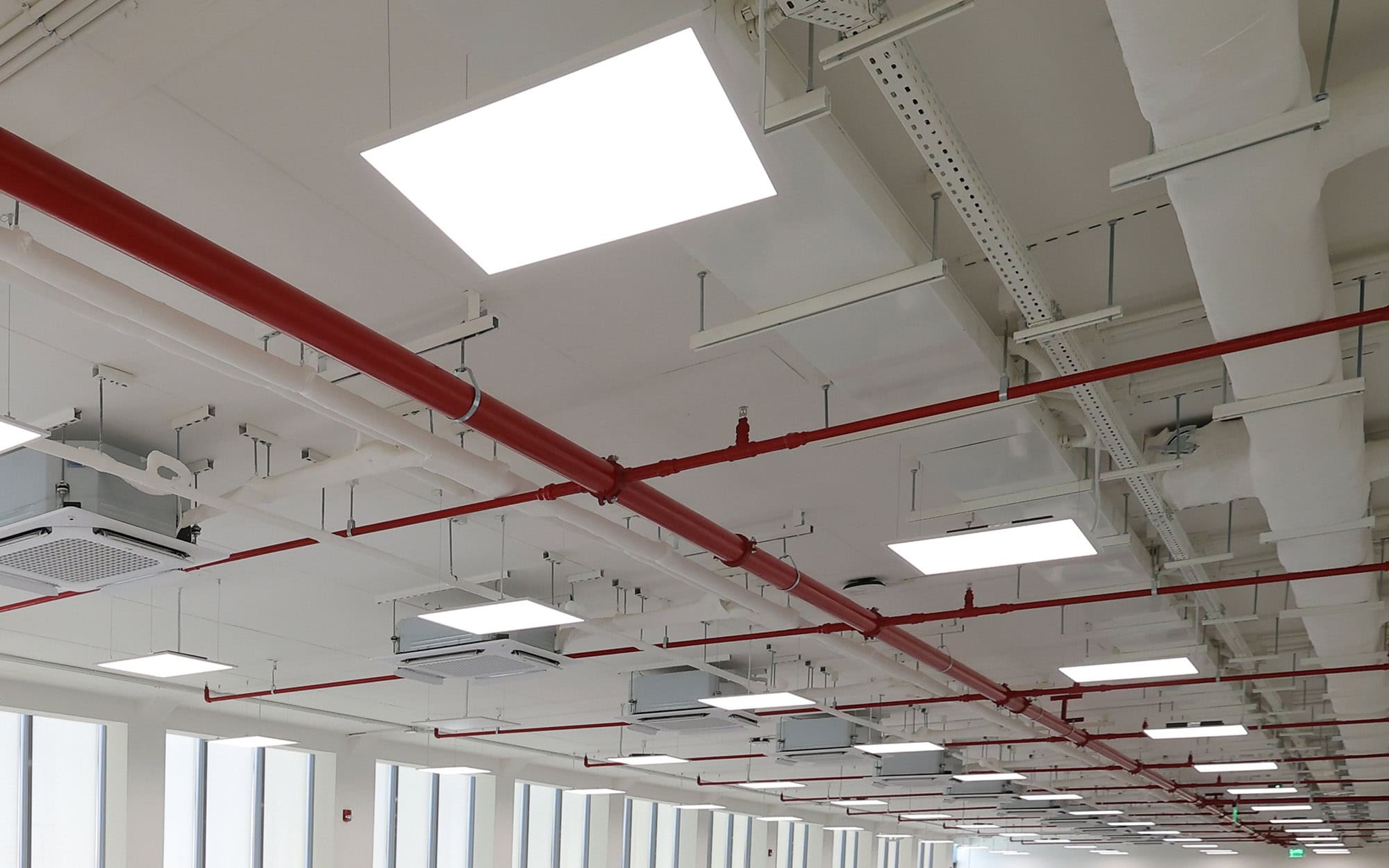

Commercial building fire sprinkler systems on large projects share ceiling and shaft space with HVAC ductwork, electrical conduit, plumbing chases, and structural steel. Routing pipe through complex overhead assemblies without creating conflicts with other trades requires design coordination that starts early in the process. When that coordination happens during design development, it keeps every trade moving. When it happens during rough-in, it generates change orders and schedule delays that affect the entire project.

Understanding the full commercial sprinkler installation process helps GCs and project managers identify where coordination is most critical and build those touchpoints into the construction schedule. Commercial fire sprinkler system design that accounts for MEP layout from the start produces cleaner submittals, fewer AHJ comments, and a smoother path to final inspection.

Fire Sprinkler Systems for New Construction and Phased Timelines

Fire sprinkler systems for new construction on large sites often cannot be installed all at once. Different buildings or phases of a campus may reach rough-in readiness at different points in the project schedule. The system must be designed and permitted in a way that accommodates phased inspections, partial system activations, and incremental turnover.

For GCs managing layered construction timelines, understanding how fire protection systems are phased during new commercial construction helps align the sprinkler contractor’s work with broader project milestones. Phased planning also determines when hydraulic calculations need to be finalized, when permit submittals must go in, and when AHJ inspections are scheduled across each phase of the build.

Trust BMF Solutions for Large-Scale Commercial Sprinkler Design in Houston

BMF Solutions has delivered commercial fire sprinkler system design and installation for complex projects across Greater Houston and Southeast Texas for more than 20 years. Our team works alongside GCs, developers, and architects from early design coordination through final inspection signoff to keep large-scale projects on schedule and fully compliant. Whether your project includes a warehouse, a data center, or a multi-phase commercial campus, we bring the licensed expertise and the workforce to handle it. Reach out to our team today to get experienced fire protection professionals involved from the start of your project.
